When it comes to protecting your home from water damage, recognizing the difference between weeping tile and French drain systems is vital. Both are designed to prevent water from undermining the stability of a building’s foundation or causing soggy lawns and gardens, but they do so in unique ways. This article digs into the core of the struggle between weeping tile vs French drain, deconstructing their functions, installation, and performance to help you decide which system is the best defense for your water troubles.
Weeping Tile
What is it?
A weeping tile, also known as a drain tile or perimeter drain, is an essential component of a foundation’s waterproofing system. Traditionally, it was made of terracotta tiles, but modern iterations are predominantly constructed from plastic materials. These pipes feature small slits or holes along their length to facilitate the ingress of water.
How does it work?
Weeping tiles are typically installed at the footing of a building’s foundation, encircling the structure. Their primary function is to collect and divert water away from the foundation, preventing it from seeping into the basement or crawl space. Here’s a step-by-step breakdown of how a weeping tile system works:
- Water Collection: Rainwater, melted snow, or natural groundwater accumulates around the foundation;
- Infiltration: The weeping tiles, buried in the ground, allow water to enter through their porous walls or holes;
- Transportation: Collected water is channeled within the weeping tile, moving away from the foundation’s base;
- Discharge: The water reaches a designated endpoint, often a sump pump or municipal storm drain, where it is safely expelled from the vicinity of the building;
- Preventing Damage: By effectively diverting water away, weeping tiles safeguard the foundation from moisture-related issues, such as flooding, mold growth, and structural damage.
French Drain
What is it?
A French drain offers a multifaceted and effective approach to addressing surplus surface and subsurface water. This configuration incorporates a trench filled with gravel enclosing a pipe with holes, which facilitates the diversion of water. The term “French drain” was coined after Henry French, the drain’s pioneer, who brought this method into common use during the 1800s.
How does it work?
Commonly placed around the edge of a structure’s foundation, a French drain’s core purpose is to intercept and divert water, steering clear of potential infiltration into basements or crawl spaces. The operation of a French drain involves several key stages:
- Trench Excavation: Digging a trench at the chosen site, which typically inclines away from areas prone to water accumulation;
- Installation of Perforated Piping: Laying a pipe with openings in the trench to collect and channel the water to an exit point;
- Filling with Gravel: Pouring in rough gravel or rocks, establishing a permeable layer for water to flow through easily;
- Water Entry: The trench captures excessive rainwater or rising groundwater;
- Water Channeling: The water is then carried into the pipe, where it is conveyed securely;
- Water Diversion: The pipe directs the water to a predetermined release area, like a road, drainage canal, or suitable alternative location;
- Effective Water Management: Through this system, water is efficiently redirected, thus avoiding accumulation where it is undesired, for instance, around a building’s base or in yard depressions.
Weeping Tiles vs. French Drains: A Comparison
Let’s summarize the key differences between weeping tiles and French drains using a comparative table:
| Aspect | Weeping Tiles | French Drains |
| Purpose | Protect foundations by draining groundwater. | Redirect surface and groundwater away from problem areas. |
| Material | Modern: Plastic pipes with slits/holes. | Perforated pipe and gravel-filled trench. |
| Installation Location | Along the footing of a foundation. | Varies, depending on specific drainage needs. |
| Water Collection | Around the foundation. | Specific problem areas, slopes, or surface water sources. |
| Water Transport | To a sump pump or storm drain. | To a suitable discharge point (e.g., street or ditch). |
| Prevents Damage | Protects against basement flooding and damage. | Prevents water accumulation in unwanted areas. |
| Inventor/Origin | Originated from the practice of using terracotta tiles. | Invented by Henry French in the 19th century. |
The Installation Duel: Laying the Groundwork
Both the Weeping Tile System and the French Drain are effective in redirecting water away from areas that you don’t want it to be, such as basements and gardens, in order to prevent issues like flooding. Within this guide, we will explore the installation procedures for each of these systems, offering you comprehensive instructions and valuable insights to assist you in making a well-informed choice.

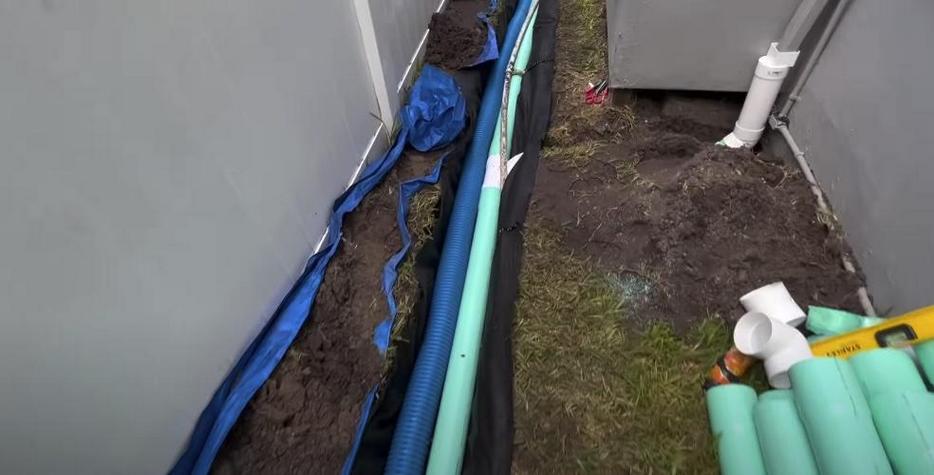

Installing a Weeping Tile System
- Excavate a channel encircling the base of your home. Ensure this channel is dug to a depth surpassing that of the basement’s floor, and wide enough to accommodate the drainage pipe;
- Install the drainage pipe within this channel, orienting the perforations downwards to allow water ingress;
- Envelop the drainage pipe in a geotextile filter cloth to prevent sediment intrusion while maintaining unobstructed water passage;
- Commence filling the channel with a sequence of larger stones followed by finer gravel, tamping down each stratum. Conclude by covering with topsoil, shaping it to incline away from your residence, facilitating water’s movement towards the drainage pipe.
Installing a French Drain
- Start by putting a heavy layer of gravel in the trench. This helps the French drain stay in position and allows water flow;
- Place the perforated pipe, like PVC, on the gravel. Make sure it tilts slightly toward where you want the water to go;
- Cover the pipe with extra gravel, then leave room on top for soil or grass, depending on how you want it to look. The gravel lets water enter into the pipe easier.
Comparison of Weeping Tile System and French Drain
| Aspect | Weeping Tile System | French Drain |
| Purpose | Prevent basement flooding | Manage surface water issues |
| Installation Location | Around the foundation | Problem areas on your property |
| Pipe Orientation | Holes facing downward | Perforated pipe on gravel bed |
| Pipe Material | Typically, perforated PVC pipe | PVC or flexible corrugated pipe |
| Filter Fabric | Used to prevent clogging | Not typically used |
| Backfill Material | Gravel and soil | Gravel and topsoil or grass |
| Slope Requirement | N/A (flat or slight slope) | Typically 1/8 to 1/4 inch/ft |
Performance and Effectiveness: The Results Speak
Both systems have their unique attributes and advantages. In this comprehensive guide, we will delve into the performance and effectiveness of these drainage solutions, offering a detailed comparison of their key features.
Weeping Tile Attributes
Weeping tiles, also known as perimeter drains or foundation drains, are underground drainage systems designed to safeguard a building’s foundation from water damage. Let’s take a closer look at the key attributes of weeping tiles:
| Attribute | Description |
| Targeted Protection | Weeping tiles are installed around a building’s perimeter to efficiently direct water away from the foundation, where it could cause costly damage. They are especially useful for preventing water from collecting in the basement and causing structural damage. |
| Out of Sight | One of the notable advantages of weeping tiles is their discreet nature. Once installed, they remain hidden beneath the ground, preserving the aesthetic appeal of your property. This makes them an excellent choice for homeowners who want effective drainage without compromising on the visual appeal of their landscaping. |
| Lifespan | A well-installed weeping tile system can have an impressively long lifespan, lasting for decades with minimal maintenance. This durability is due to the use of materials like PVC or corrugated plastic pipes, which are resistant to corrosion and degradation over time. Proper installation and regular inspections can further extend their longevity. |
French Drain Attributes
French drains, also known as rubble drains or sub-surface drains, are another popular drainage solution. They offer versatility and customization options. Let’s explore the key attributes of French drains:
| Attribute | Description |
| Versatility | French drains are highly versatile and effective in addressing a variety of drainage issues. They can be employed to manage both surface water problems, such as water pooling in your yard after heavy rainfall, and more severe water ingress at the foundation level, where they redirect groundwater away from your home’s foundation. |
| Customizable | One of the significant advantages of French drains is their customizability. These drains can be tailored to fit the specific needs and landscape of your property. Whether you need a shallow or deep drain, perforated or non-perforated pipes, or a specific layout to target problem areas, French drains can be adapted accordingly. This customization ensures that they effectively address your unique drainage challenges. |
| Maintenance | French drains may need to be serviced from time to time to keep working properly over the long term. When sediment and debris accumulate in the gravel or aggregate material used in French drains, the drains become less effective. Regular inspections and maintenance, such as cleaning the system or replacing obstructed gravel, are important to keep the drain running correctly. A well-maintained French drain system will last longer and perform better for longer. |
Weeping Tile vs French Drain: The Battle in Different Terrains
In the competition of weeping tile vs French drain, the terrain and the water issue at hand can determine the victor.
Heavy Rainfall Areas
In regions prone to heavy rainfall, effective water management is crucial to prevent surface water pooling around your home’s foundation. Here’s how weeping tile and French drains stack up:
- French Drain: French drains excel in quickly diverting surface water away from your property, making them a top choice in areas with frequent heavy rains. They consist of a perforated pipe surrounded by gravel or other drainage materials that allow water to flow easily into the pipe and be carried away. French drains can handle large volumes of water efficiently, preventing waterlogging in your yard and potential flooding issues;
- Weeping Tile: Weeping tile systems are essential for preventing hydrostatic pressure from building up and damaging your home’s foundation. They capture groundwater from a deeper level and transport it away. While they may not address surface water as effectively as French drains, they are vital for foundation protection in such conditions. Weeping tile systems can include a sump pump that efficiently removes water from the basement, providing additional protection against flooding.
Clay Soil Regions
Clay soils pose a unique challenge as water does not readily percolate through them. In such areas, selecting the right drainage system is crucial:
- French Drain: French drains are effective in clay soil regions, as they swiftly remove surface water and prevent it from saturating the soil. This helps maintain a healthy environment for plants and grass in gardens and landscapes. The perforated pipe in a French drain allows water to escape, preventing the clay soil from becoming overly compacted, which can impede plant growth;
- Weeping Tile: Weeping tile systems can also be beneficial in clay soil regions. They capture water from deeper within the soil, preventing it from accumulating around the foundation. This can help protect your home from structural damage caused by swelling clay soils. In clay-rich areas, weeping tile systems with proper drainage can keep the soil moisture levels in check, reducing the risk of foundation damage and basement flooding.
Gardens and Landscapes
In garden and landscape settings, proper drainage is essential to protect plants and prevent waterlogging. Here’s how weeping tile and French drains are suited for these environments:
- French Drain: French drains are ideal for gardens and landscapes, as they efficiently redirect surface water away from the area, ensuring that excess water does not harm plants and grass. They can be strategically placed to ensure the health of your plants and landscaping features;
- Weeping Tile: Weeping tile systems are not commonly used for gardens or landscapes, as they primarily address subsurface water issues related to foundations. However, in cases where the garden is close to the house and foundation protection is a concern, a combination of weeping tile and French drain systems may be employed to address both surface and subsurface water management needs.
Cost Considerations: Weeping Tile vs French Drain
When comparing the cost of weeping tile and French drain systems, several factors come into play:
- Materials: Weeping tiles may require less gravel or drainage material than French drains, potentially reducing material costs. However, the cost of a sump pump, if needed for weeping tiles, can add to the total expense. Additionally, the choice of drainage material for French drains can impact costs, with options ranging from gravel to specialized drainage fabrics;
- Labor: Labor costs can vary based on the depth and location of the installation. Installing weeping tiles, which are typically buried deeper, may incur higher labor costs compared to French drains. The complexity of the terrain, such as the presence of rocks or tree roots, can also affect labor costs for both systems;
- Longevity: Weeping tiles are known for their longevity and require relatively low maintenance. Investing in a weeping tile system could mean fewer costs over time, as they are less likely to require frequent replacements or repairs compared to French drains. French drains may need periodic maintenance, such as cleaning or replacing the drainage material, to ensure optimal performance and prevent clogs.
The Climatic Confrontation: Weeping Tile vs French Drain in Seasonal Settings
Winter Woes
In regions with freezing temperatures, both weeping tile and French drain systems are susceptible to ice blockages:
- Weeping Tile: Weeping tiles, being buried deeper, are less susceptible to freezing compared to French drains. The depth at which they operate provides some insulation from the freezing temperatures, reducing the risk of blockages. However, it’s essential to ensure proper insulation and protection against freezing for the sump pump if your weeping tile system includes one;
- French Drain: French drains can be vulnerable to freezing, especially if they are installed near the surface. Ice blockages can disrupt the drainage system’s effectiveness during the winter months. To mitigate this, some homeowners opt for deeper installation of French drains or use insulating materials to protect against freezing.
Spring Thaw
As spring emerges and the snow dissipates, it can test the effectiveness of our water drainage systems. Here’s the benefit of using both weeping tile and French drain together:
- Integrative Solution: In regions experiencing varied seasonal temperatures, the joint use of weeping tile and French drain systems offers an all-inclusive solution for water control. Weeping tiles are adept at dealing with water beneath the ground level, while French drains are designed to handle the excess water pooling on the surface. Employing both systems can greatly enhance the protection against water complications as temperatures rise in spring and throughout the year. This dual-system strategy ensures that water from both the surface and the underground is channeled away from structures, mitigating potential flood risks or structural damage.
Conclusion
The showdown of weeping tile vs French drain doesn’t yield a one-size-fits-all winner. Each system has its own set of strengths and is tailored to different aspects of water management. Weeping tiles are your underground sentinels, discreetly working to safeguard your foundation from infiltration. French drains, on the other hand, are the versatile warriors, ready to combat water wherever it becomes a nuisance, above or below ground.
Choosing between a weeping tile vs French drain system—or deciding if a combination of both is necessary—depends on your specific water management needs, the local climate, and the terrain of your property. Evaluating these factors will guide you toward the right solution, ensuring that your home stands strong and dry for years to come.
FAQ
Q: Can weeping tile and French drain systems be used together?
A: Absolutely. In many cases, using both systems in conjunction can offer superior protection from water damage, especially in areas prone to both surface and subsurface water issues.
Q: How do I know if my weeping tile is working?
A: Signs that your weeping tile is functioning include a dry basement after heavy rains and no standing water near your foundation. If you have a sump pump, it should activate periodically to expel water.
Q: How often do French drains need maintenance?
A: French drains should be checked annually for sediment buildup or plant root intrusion. Every few years, it might be necessary to remove and replace the gravel to ensure proper drainage.
Q: Will installing a weeping tile or French drain damage my landscape?
A: Installation will disturb the landscape, but careful planning and skilled contractors can minimize damage. Once the system is installed, the area can be restored or even improved.
Q: Is a permit required for installing a weeping tile or French drain?
A: Permit requirements vary by location. It’s essential to check with local building codes and regulations before undertaking any significant excavation or installation project.
